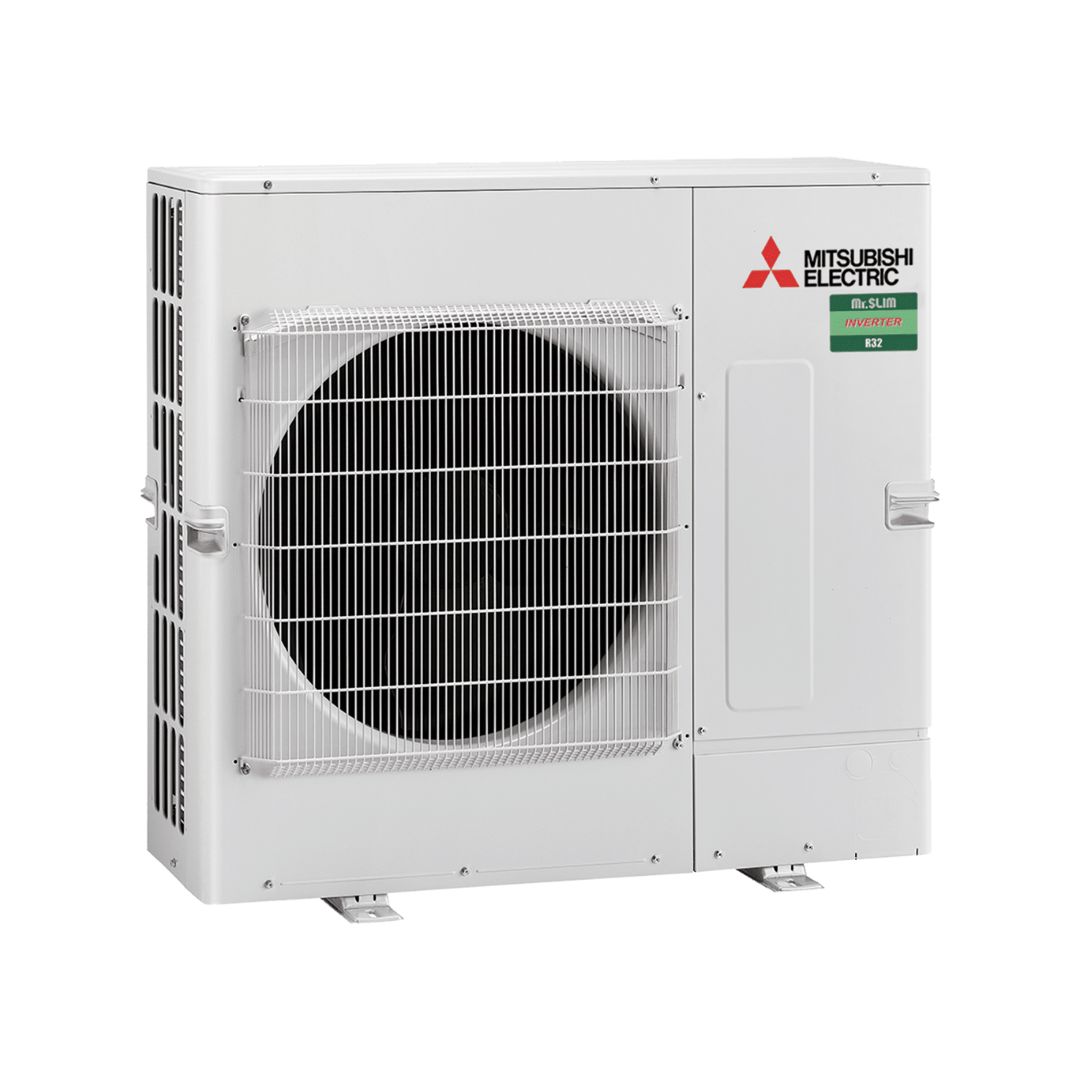

Mitsubishi Electric Mr Slim PUZ-ZM-KA Series R32 12.5kW 1PH OD 3/8 x 5/8

Product number: PUZ-M125VKA

Not Specified

Product Group : Cassette Units - Mitsubishi Electric
Description

The Mitsubishi Electric Mr Slim PUZ-M Series features a newly designed compact structure, ideal for smaller spaces. This design enhances installation flexibility and minimizes obtrusiveness. Its compact form also simplifies transportation and handling. Additionally, the series is now compatible with the HAA Series two-piece construction ducted units, PLA cassettes, and PCA under-ceiling units in 10 kW and 12.5 kW models. When paired with our GAA and low-profile PEAD Series ducted units, this range offers a versatile solution suitable for a wide variety of applications.

• Specifications may differ depending on the application. Please refer to the manufacturer's brochures for details.•

General Information
Product Group : Cassette Units - Mitsubishi Electric
Additional Info
Indoor Units Connectable (Quantity) : 1 Single Split / Multi Split : Single
Air Volume/Air Flow
Air Flow : 1433 L/s
Cooling Capacity
Cooling Capacity : 12.0 kW
Electrical
Power Supply : 230/1/50 V/Ph/Hz
Fan
Number Of Fans : 1
Heating Capacity
Heating Capacity : 14.0 kW
Measurements
Height : 981 mm Weight : 84.0 kg
Width : 1050 mm
Outdoor Unit Attributes
Depth (OU) : 330 mm Height (OU) : 981 mm
Length (OU) : 1050 mm Net Weight (OU) : 84 kg
Sound Pressure Level (OU) : 74 dB(A)
Pipes
Chargeless Piping Length : 30 m Max Piping Length : 55 m
Refrigerant
Refrigerant : R32 Refrigerant Charge : 3.60 kg
Refrigerant Pipe Size : 3/8 - 5/8 in
Temperature
Temperature Range Cooling : -15 - 46 °C Temperature Range Heating : -15 ~ 21 °C
File name Document Type Extension Size
flyer-puz-m-series-2020-10-ast-3272043.pdf Brochures pdf 407.36 KB
installation-manual-puz-m100-140vka-a-im-bh79a571h01-2020-ast-3271883.pdf Installation Manual Indoor Unit pdf 7.14 MB
mr-slim-air-conditioning-systems-brochure-2023-ast-3272213.pdf Brochures pdf 8.31 MB
