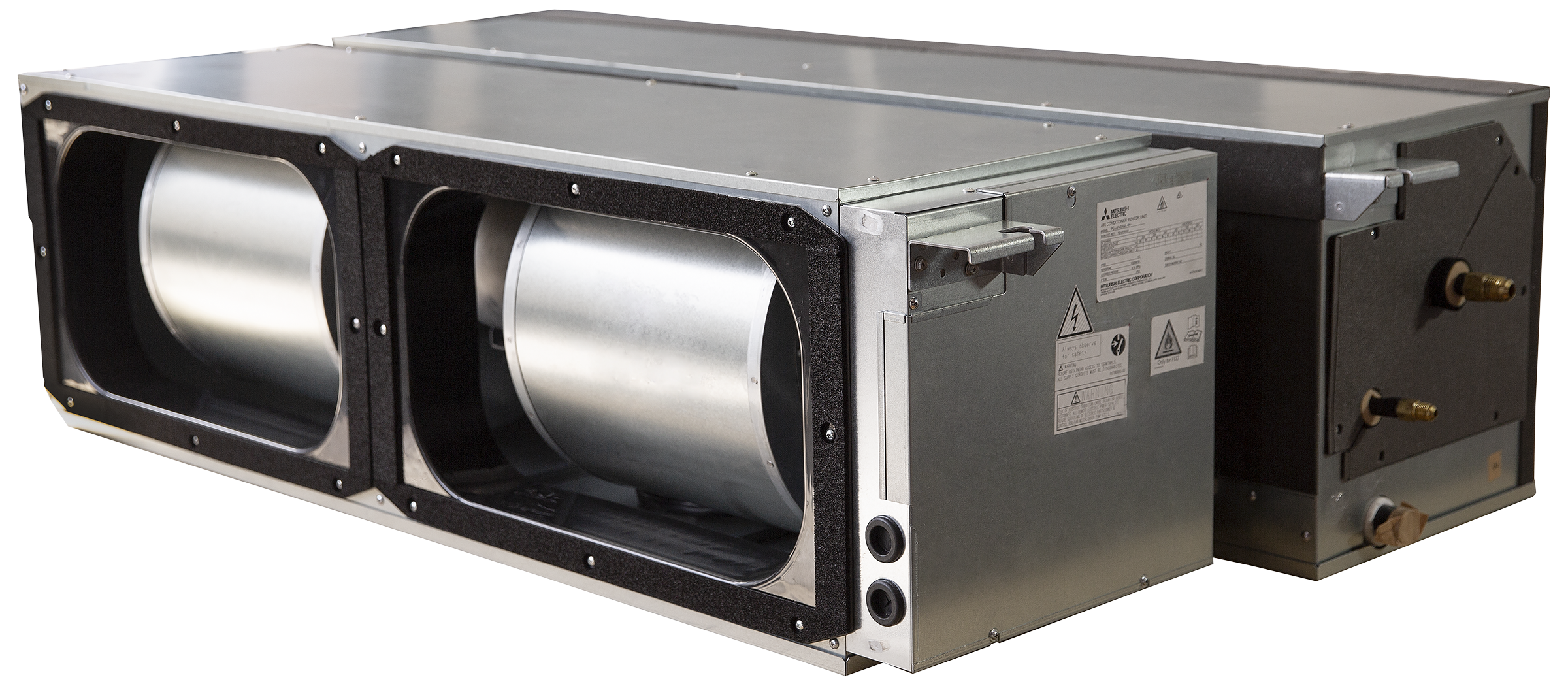

Mitsubishi Electric Ducted Inv R32 12.5kW Splittable 1 Ph ID 3/8 x 5/8

Product number: PEA-M125HAA

Mitsubishi Electric

PLEASE LOGIN TO SEE PRICES

Further products

Product Group :	Ducted Systems - Mitsubishi Electric

Description

Whether you require consistent heating or cooling - for the home or office - Mitsubishi Electric offers you technology which is quiet, simple to use, energy efficient and reliable.Mr Slim is 'slim' giving you greater control over customisation and flexibility of installation with a capacity of 7.1 to 20 kW.FOR ALL AVAILABLE CONNECTABLE UNITS, please contact your local ACD Branch for pricing and availability.

General Information

Condensate Water Pump Provided :	No	Model Number :	PEA-M125HAA
Product Group :	Ducted Systems - Mitsubishi Electric

Additional Info

Indoor/ Outdoor/ Other :	Indoor	Single Split / Multi Split :	Single Split / Multi Split

Air Volume/Air Flow

Air Flow (Low/Medium/High) :	1000 L/s	Air Volume :	3600 m³/h

Connectivity

Pre-Equipped Wifi :	Optional

Cooling Capacity

Cooling Capacity :	12.5 kW	Cooling Capacity (Min/Rated/Max) :	5.5 - 12.5 - 14.0 kW

Electrical

Max Current :	16 A	Power Supply :	400/3/50 V/Ph/Hz
Voltage :	220-240/1/50 V/Ph/Hz

Energy Efficiency/Performance

COP :	3.94	EER :	3.42

Heating Capacity

Heating Capacity :	14.0 kW	Heating Capacity (Min/Rated/Max) :	5.0 - 14.0 - 16.0 kW

Measurements

Depth :	900 mm	Height :	380 mm
Net Weight :	66 kg	Width :	1405 mm

Pipes

Pipe Dimension :	9.52/15.88 mm

Refrigerant

Refrigerant :	R32	Refrigerant Pipe Size :	3/8 - 5/8 in

Sound Power/Pressure

Sound Pressure Level (Low/Medium/High/Quiet) :	35/38/42 dB(A)

Wire

Wire Diameter Interconnection Cable :	3C + E

File name	Document Type	Extension	Size
mr-slim-brochure-2021-en-ast-2068244.pdf	Brochures	pdf	6.07 MB
