Description
MTZ064-4

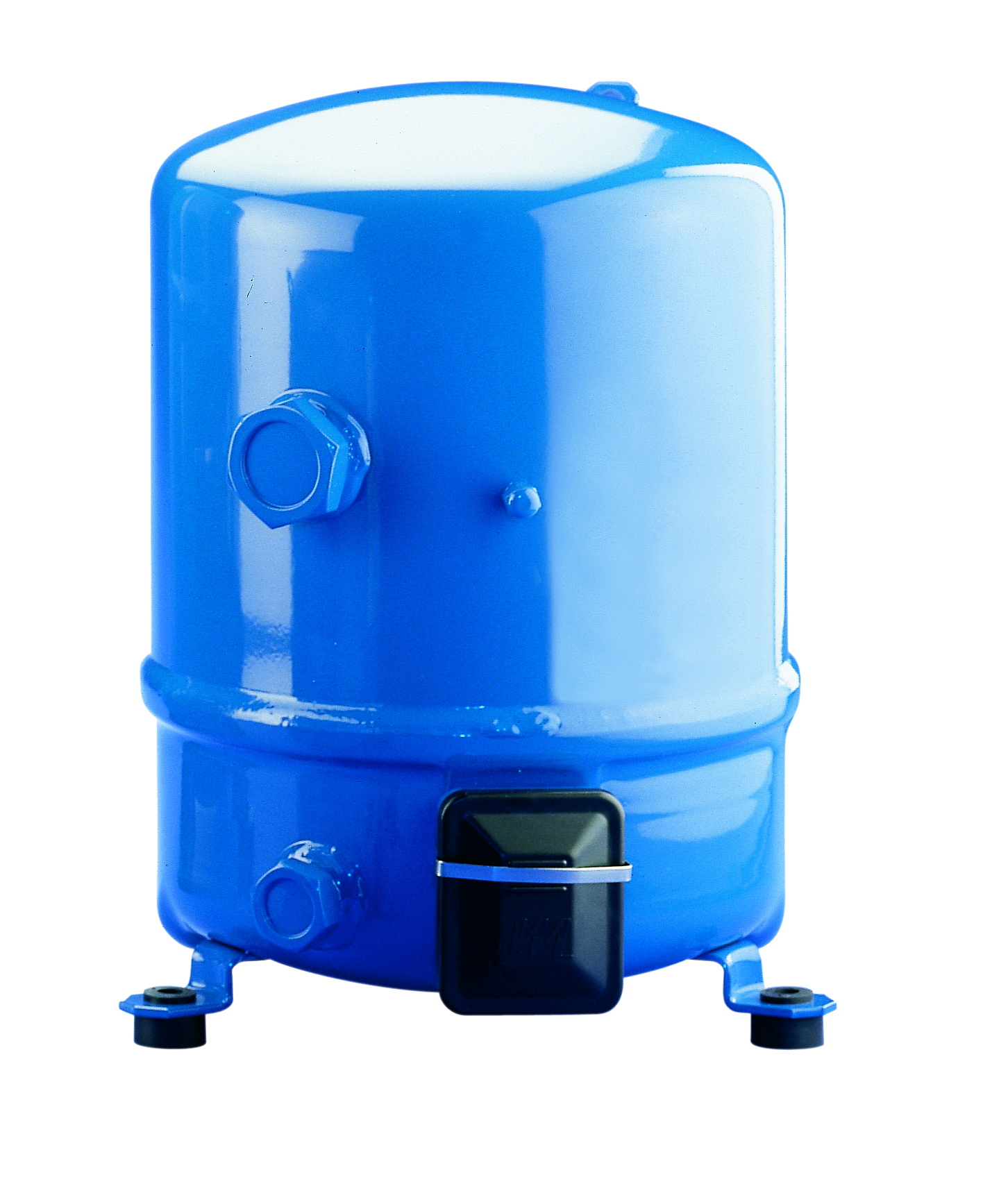

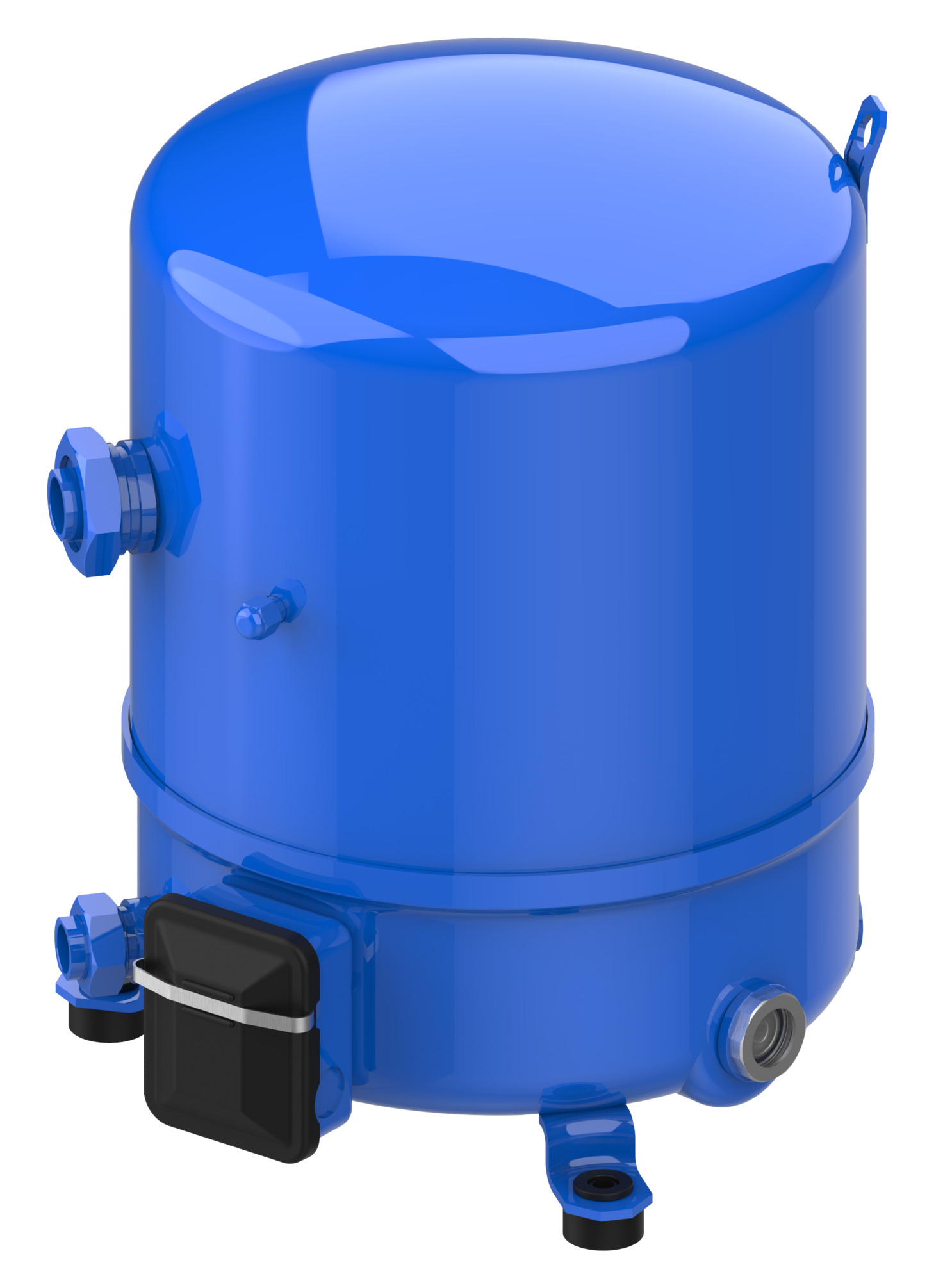

Maneurop Reciprocating Compressor MTZ64-4VI
Product number: MTZ64-4VI
| Product Group : | Comp Herm - Maneurop |
|---|
General Information
| Application : | H/MBP/AC | Colour : | Blue |
|---|---|---|---|
| Cooling Type : | Suction | Model Number : | MTZ64HM4CVE |
| Number Of Cylinders : | 2 | Product Group : | Comp Herm - Maneurop |
| Type : | MTZ |
Additional Info
| Family : | MTZ |
|---|
Capacity
| Capacity Control : | No |
|---|
Capacity HBP
| Capacity HBP -5°C : | 10620 kW | Capacity HBP -5°C R448A : | 10620 W |
|---|
Compressor
| Power Supply Compressor : | 400/3/50 460/3/60 V/Ph/Hz | Swept Volume : | 107.71 cm³ |
|---|---|---|---|
| Technique : | Reciprocating |
Connections
| Connection Type : | Valve/Rotolock | Discharge Connection Height : | 74 mm |
|---|---|---|---|
| Discharge Connection Pipe Size : | 3/4 in | Discharge Connection Size : | 1 1/4 in |
| Discharge Line Connection : | 1 1/4 in | Suction Connection Height : | 265 mm |
| Suction Connection Pipe Size : | 7/8 in | Suction Connection Size : | 1 3/4 in |
Electrical
| Frequency : | 50/60 Hz | IP Class : | IP55 |
|---|---|---|---|
| LRA : | 64 A | MCC : | 14 A |
| Power Supply : | 440/3/50-60 V/Ph/Hz | RLA : | 10 A |
| Voltage : | 380-400/3/50 V/Ph/Hz |
Logistical Information
| Commodity Code : | 84143081 | Country Of Origin : | FRA |
|---|---|---|---|
| EAN : | 5702428980494 | Gross Weight : | 40.75 kg |

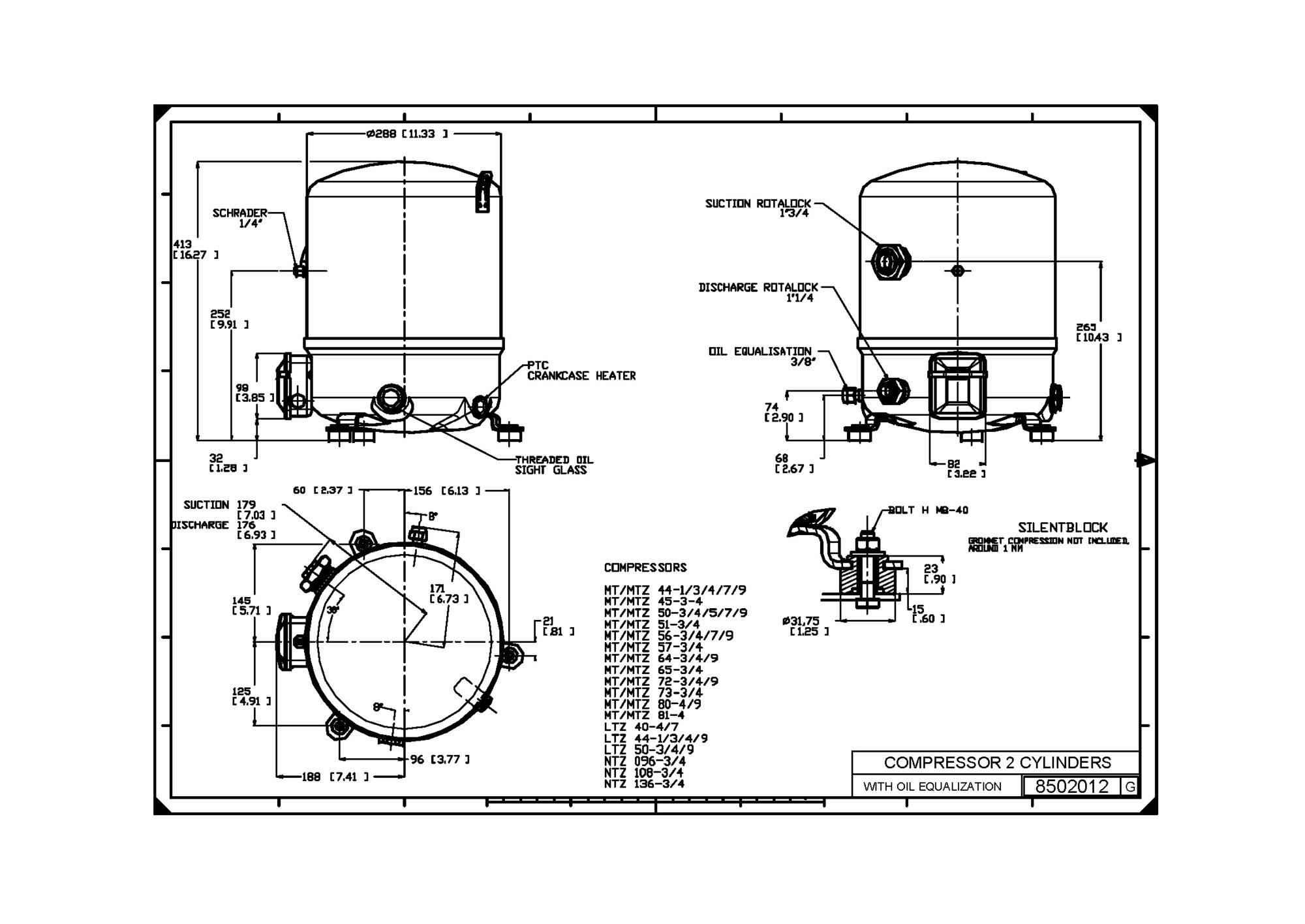

Measurements
| Diameter : | 288 mm | Height : | 413 mm |
|---|---|---|---|
| Length : | 288 mm | Weight : | 39 kg |
| Width : | 288 mm |
Motor
| Motor Protector : | Internal | Motor Type : | DOL |
|---|
Oil
| Oil Charge : | 1800 cm³ | Oil Equalization : | 3/8'' flare SAE |
|---|---|---|---|
| Oil Type : | 175PZ |
Performance
| Nominal HP : | 5.1/3 |
|---|
R404A Performances
| R404A Nominal Capacity -5°C : | 7080 W |
|---|
Refrigerant
| Max Refrigerant Charge : | 5.00 kg | Refrigerant : | R134a, R404A, R407A, R407C, R407F, R448A, R449A, R452A, R507A, R513A |
|---|
Valves
| Expansion Device : | V |
|---|
