Description

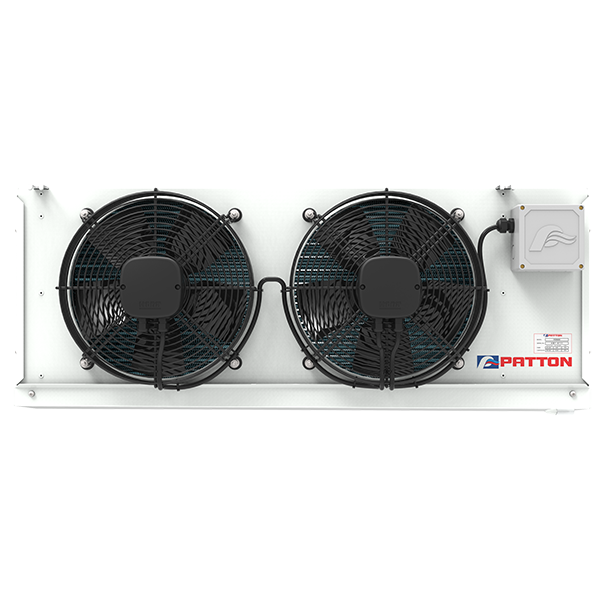

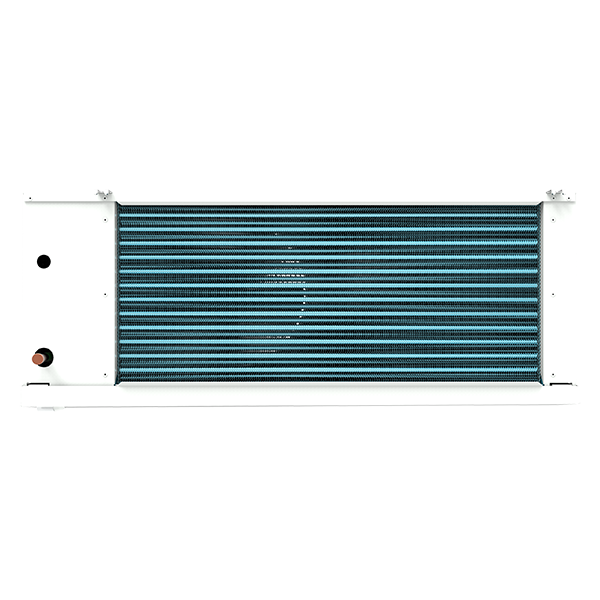

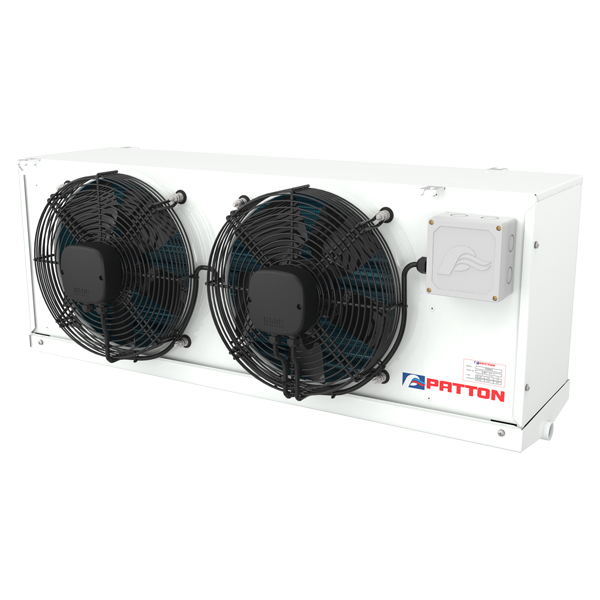

Low Temp Unit Cooler BL27
Product number: BL27
Patton
| Product Group : | Evap - Patton LT |
|---|
General Information
| Product Group : | Evap - Patton LT |
|---|
Air Volume/Air Flow
| Air Throw : | 9 m | Air Volume : | 3024 m³/h |
|---|
Coils
| Coil : | Fin and Tube |
|---|
Connections
| Drain Connection Size : | 20 mm | Liquid Line Connection : | 1/2 in |
|---|---|---|---|
| Suction Line Connection : | 3/4 in |
Drain
| Drain Location : | Right |
|---|
Electrical
| Electric Defrost : | No | Electrical Connection Location : | Right |
|---|
Evaporator
| Fin Spacing : | 4 mm |
|---|
Fan
| Fan Size : | 300 mm | Number Of Fans : | 2 |
|---|
Measurements
| Depth : | 378 mm | Height : | 294 mm |
|---|---|---|---|
| Length : | 988 mm | Weight : | 24 kg |
R404A Performances
| R404A Capacity @ -24SST/6KTD : | 2820 W |
|---|
R448A Performances
| R448A Capacity @ -24SST/6KTD : | 2790 W |
|---|
Temperature
| Temperature Application : | Low Temp |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| patton-b-series-en-ast-609005.pdf | Technical Literature | 810.3 KB |
