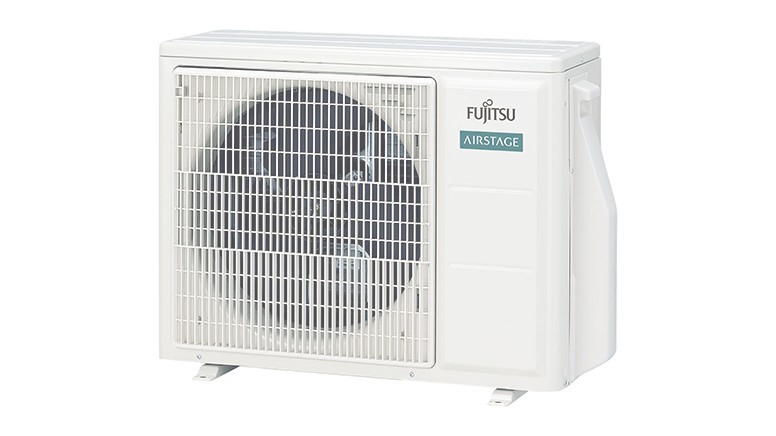

Product number: AOTG12KVCA
Fujitsu
| Cooling Capacity : | 3.5 kW |
|---|---|
| EER : | 4.1 |
| Heating Capacity : | 4.5 kW |
| Product Group : | Hi-Wall - Fujitsu |
| Refrigerant : | R32 |
| Product Group : | Hi-Wall - Fujitsu |
|---|
| Cooling Capacity : | 3.5 kW |
|---|
| Power Supply : | 230/1/50 V/Ph/Hz |
|---|
| COP : | 4.05 | EER : | 4.1 |
|---|
| Number Of Fans : | 1 |
|---|
| Heating Capacity : | 4.5 kW |
|---|
| Depth : | 290 mm | Height : | 632 mm |
|---|---|---|---|
| Weight : | 38 kg | Width : | 799 mm |
| Max Height Difference : | 15 m | Max Piping Length : | 20 m |
|---|
| Refrigerant : | R32 | Refrigerant Charge : | 0.94 kg |
|---|---|---|---|
| Refrigerant Pipe Size : | 1/4 - 3/8 in | Refrigerant precharged up to : | 15 m |
| Sound Pressure Level : | 58 dB(A) |
|---|
| Temperature Range Cooling : | -10°C ~ 46 °C | Temperature Range Heating : | -15°C ~ 24 °C |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| fujitsu-inverter-floorceiling-dualconsole-system-ast-3272062.pdf | Brochures | 959.96 KB |
