Product number: 067B3277
Danfoss
| Product Group : | Expansion Valves - Danfoss |
|---|

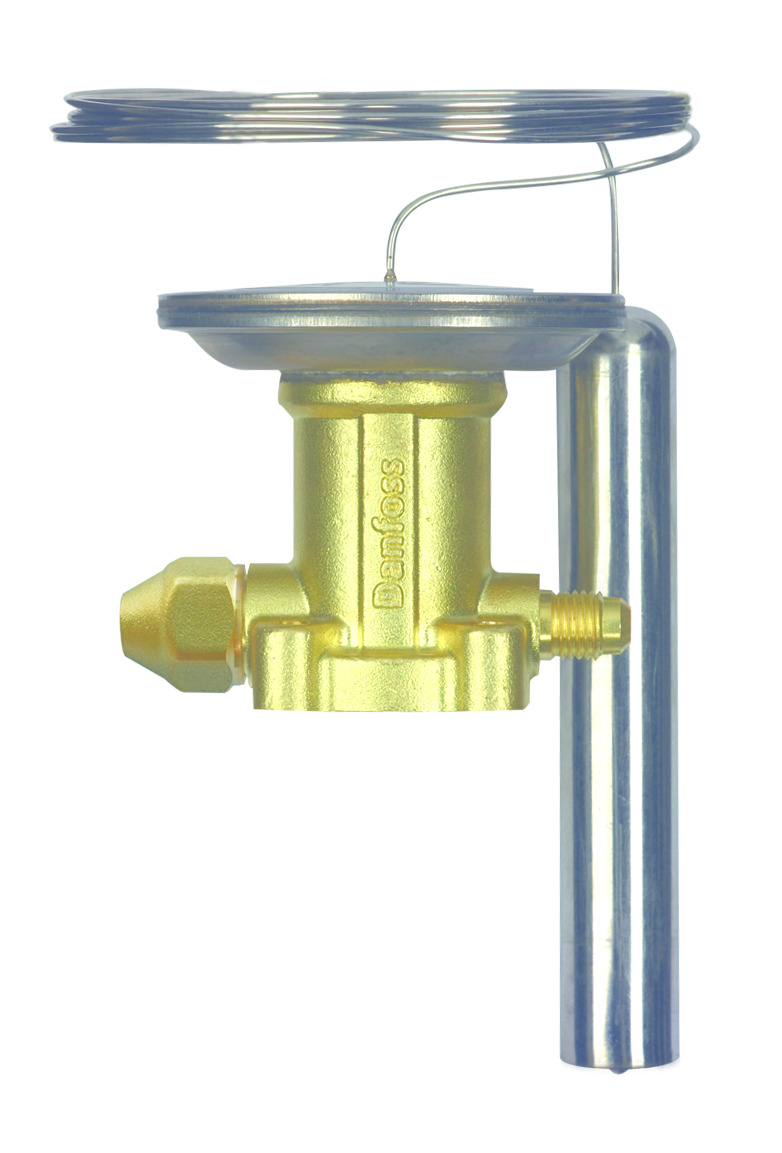

The TE 5 - TE 55 series expansion valve regulate the injection of refrigerant into evaporators. It controls the refrigerant flow based on the superheat. The exchangeable power element is produced with the well known Danfoss laser welding technology for extended lifetime capability. The TE 5 - TE 55 series is available with a wide range of orifices which will cover a wide range of applications.
| Model Number : | 067B3277 | Product Group : | Expansion Valves - Danfoss |
|---|---|---|---|
| Type : | TE 5 |
| Family : | TE 5 - 55 |
|---|
| Equalization Connection Size : | 1/4 in | Equalization Connection Type : | Flare |
|---|
| Commodity Code : | 84819000 | Country Of Origin : | CHN |
|---|---|---|---|
| EAN : | 5702428148887 | Gross Weight : | 0.512 kg |
| Body Material : | Brass |
|---|
| Capillary Tube Length : | 118.0 in, 3000 mm | Net Weight : | 0.43 kg |
|---|---|---|---|
| Weight : | 0.43 kg |
| Max Operating Pressure : | 28.0 Bar | Pressure Equalization : | External |
|---|
| Refrigerant : | R407C |
|---|
| Approval : | EAC, LLC CDC TYSK |
|---|
| Max Temperature : | 10 °C | Min Temperature : | -40 °C |
|---|---|---|---|
| Temperature Range : | -40-10 °C |
| MOP : | 15 °C |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| thermostatic-expansion-valves-type-te-5-te-12-te-20-and-te-55-ast-an020186412218en-000706.pdf | Installation Manual | 878.43 KB | |
| manufacturer-s-declaration-danfoss-md-033f4006-ast-id365946683607-0101.pdf | Conformity Declaration | 889.08 KB | |
| thermostatic-expansion-valves-type-te-5-te-55-ast-ai246186497081en-000801.pdf | Technical Literature | 8.49 MB | |
| manufacturer-s-declaration-danfoss-md-033f4011-ad-ast-id365946681605-0201.pdf | Conformity Declaration | 594.92 KB | |
| brochure-overview-brochure-thermostatic-expansion-valves-en-ast-ad135086437198en-000601.pdf | Brochures | 7.14 MB | |
| manufacturer-s-declaration-danfoss-md-067r1068-af-ast-id365946710628-0301.pdf | Conformity Declaration | 1.46 MB |
