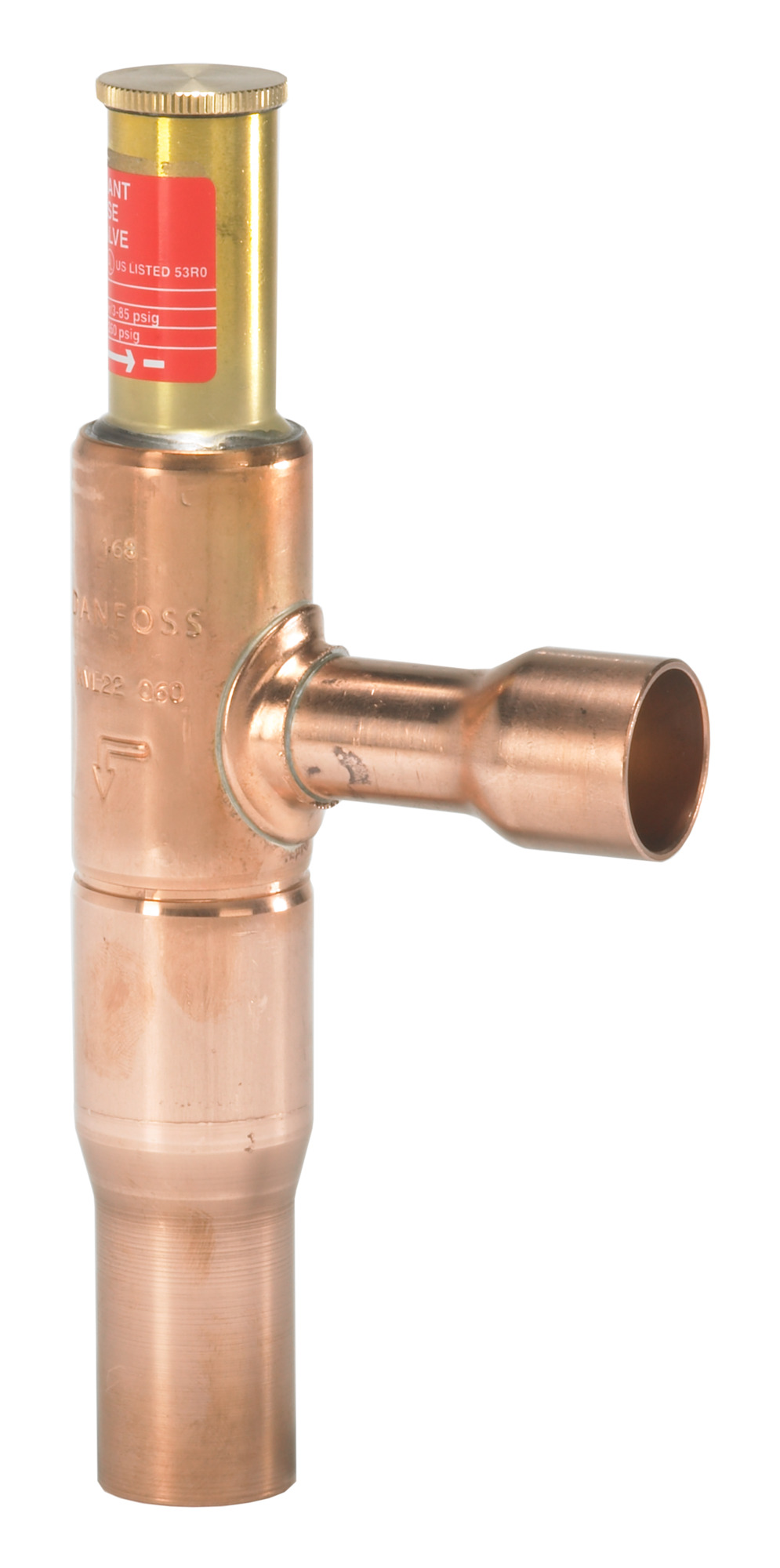

Danfoss CPR Valve KVL22S 7/8"

Product number: 034L0045

Danfoss

Danfoss CPR Valve KVL22S 7/8"
Danfoss CPR Valve KVL22S 7/8"
Danfoss CPR Valve KVL22S 7/8"
Danfoss CPR Valve KVL22S 7/8"
Danfoss CPR Valve KVL22S 7/8"
Danfoss CPR Valve KVL22S 7/8"
Product Group : Pressure Reg - Danfoss
Description

KVL crankcase pressure regulators are used to protect the compressor motor against overload experienced during startup after long off periods or just after defrost periods. They are installed in the suction line of refrigeration systems.

General Information
Product Group : Pressure Reg - Danfoss Type : KVL 22
Additional Info
Additional Info : Max. extern.bellow press.26bar Family : KVL
Connections
Connection Size : 7/8" Connection Type : Solder, ODF
Inlet Connection Size : 7/8 in, 22.00 mm Inlet Type : Solder, ODF
Outlet Connection Size : 7/8 in, 22.00 mm Outlet Type : Solder, ODF
Kv Values
Kv Value : 3.200 m³/h
Logistical Information
Commodity Code : 84818059 Country Of Origin : POL
EAN : 5702428411752 Gross Weight : 0.39 kg
Measurements
Net Weight : 0.34 kg Weight : 0.34 kg
Pressure
Max Operating Pressure : 18.0 Bar Regulating Range : 0.2-6.0 Bar
Test Pressure : 19.8 Bar
R134A Performances
R134a Capacity : 5.30 kW
R22 Performances
R22 Capacity : 7.10 kW
R407C Performances
R407C Capacity : 6.50 kW
Refrigerant
Refrigerant : R22, R134a, R290, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R448A, R449A, R449B, R450A, R452A, R454A, R454C, R455A, R507A, R513A, R515B, R516A, R600, R600a, R1234yf, R1234ze(E), R1270
Standards
Approval : C UL US LISTED, EAC, LLC CDC TYSK, RoHS, RoHS China
Temperature
Factory Setting : 2.00 Bar Medium Temperature Range : -60-130 °C
Valves
CV Value : 3.700 gal/min Flow Direction Indicator : Engraved 1-way arrow
